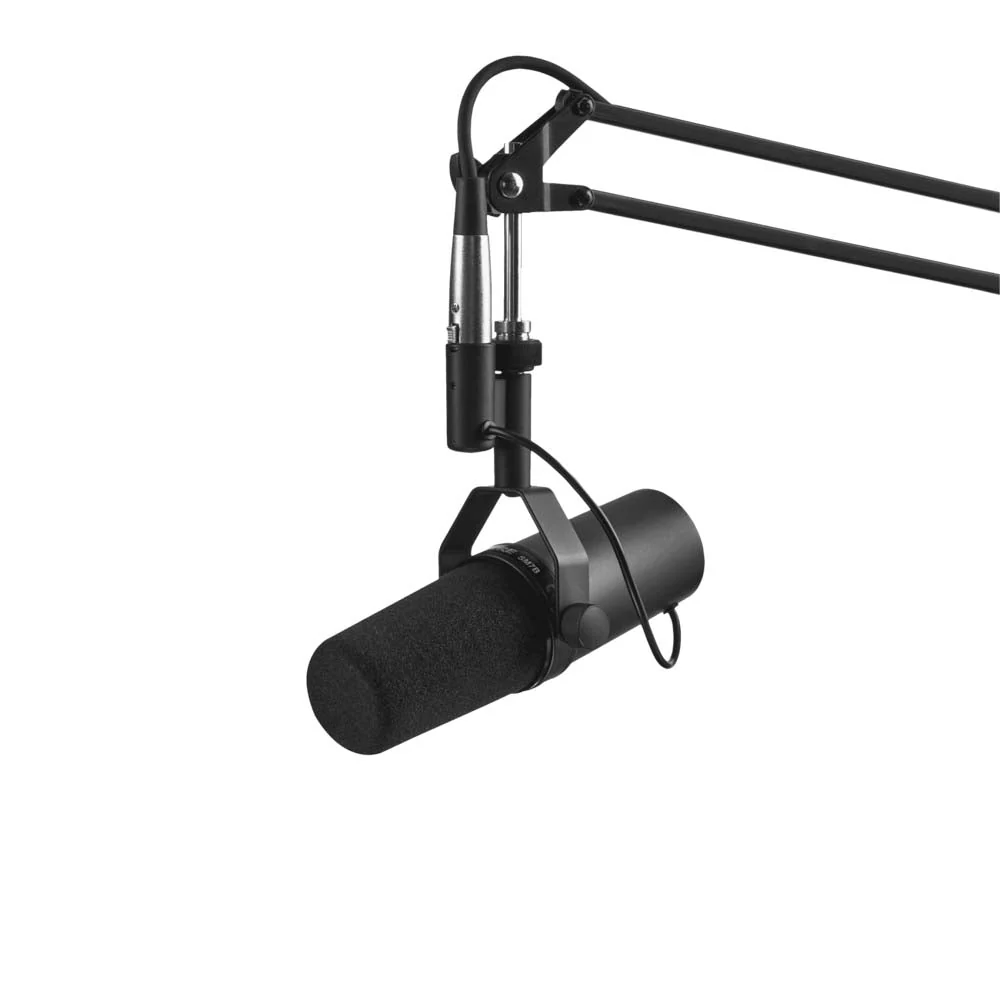

Shure SM7B Vocal Microphone

DESCRIPTION

Whether it’s broadcast, podcast or recording, voices need to be handled with care. When purified and polished, every detail has more impact. That’s why the SM7B was built, to capture smooth, warm vocals that connect the speaker to the listener.

HOW IT WORKS

The wide-range frequency response of the SM7B preserves the natural beauty of the sound it captures. With its detailed audio profile, words may travel far, but they always arrive at their destination with quality and clarity intact.

WHY IT'S BETTER

Only good air gets through

The air suspension shock isolation and the pop filter eliminate both mechanical noise and breathiness. So words get through and the rest stays out of the mix.

Uniform capture

The classic cardioid pattern is designed to reject off-axis audio. So you can sing or speak at a comfortable angle and it captures the sound, just as you want it, with minimum coloration.

Shield your sound

We added advanced electromagnetic shielding to defeat hum from computer monitors and other studio equipment.

QUALITY THAT'S IN THE DETAILS

• Rugged construction for securing the microphone cartridge
• Detachable close-talk windscreen and switch cover plate included
• Reduces distortion from loud sources
• Bass rolloff and mid-range emphasis (presence boost) controls with graphic display of response setting
• Dynamic cartridge with flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech
• Also useful for close-miking instruments in studio where warm and smooth full-frequencies are a must

SPECIFICATIONS

• Type: Dynamic
• Frequency Response : 50 to 20,000 Hz
• Polar Patter: Cardioid
• Electromagnetic Hum Sensitivity (Typical, Equivalent SPL/milliOersted):
  • 60 Hz: 11 dB
  • 500 Hz: 24 dB
  • 1 kHz: 33 dB
• Impedance: 150 ohms for connection to microphone inputs rated at 19 to 300 ohms.
• Output Level:(at 1,000 Hz): Open Circuit Voltage: – 59.0 dB (1.12 mV) 0 dB = 1 volt per Pascal
• Switches: Bass rolloff and mid-range emphasis: Slotted response selector switches.
• Cartridge Shock Mount: Internal air-suspension shock and vibration isolator.
• Microphone Connector: Three-pin professional audio (XLR)
• Swivel Assembly: Integrated, captive nut for ease of attachment to stand, fits 5/8 in.–27 thread.
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3.
• Case: Dark gray enamel aluminum and steel case with dark gray foam windscreen.
• Net Weight: 765.4 grams (1 lb, 11 oz)
