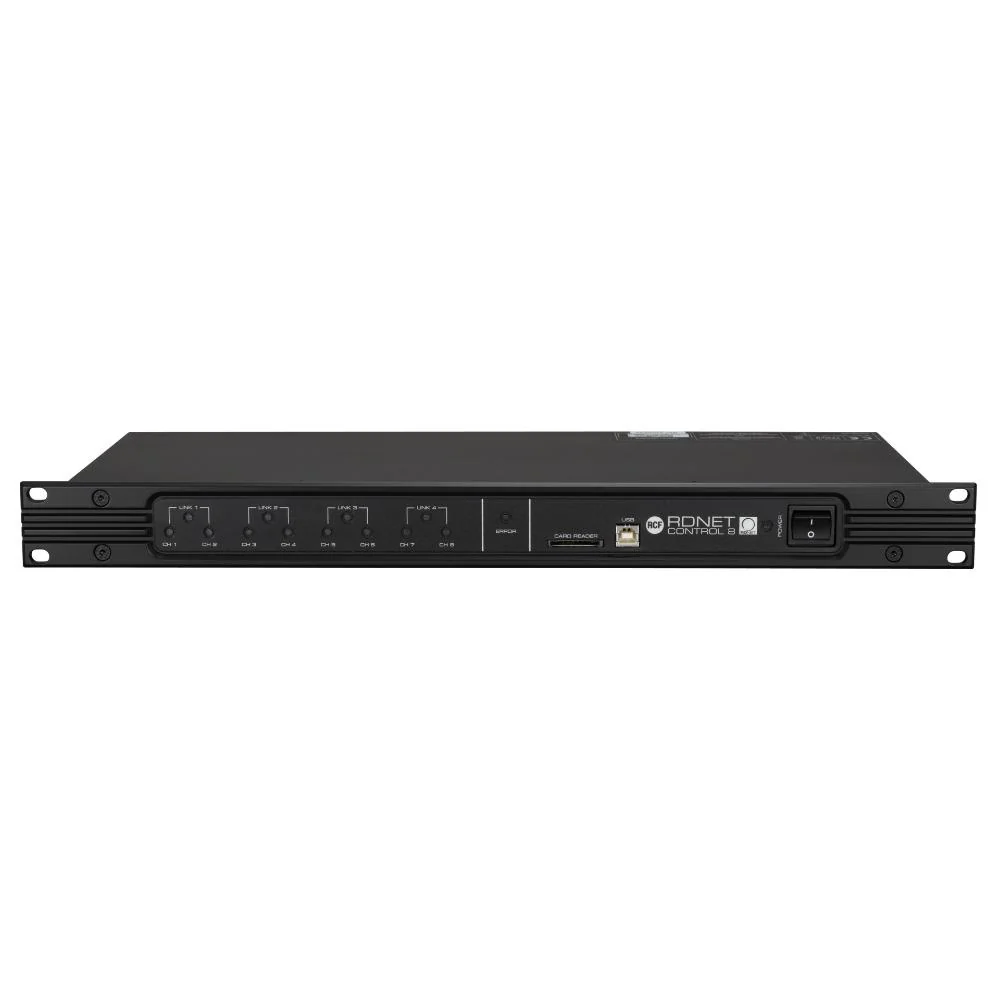

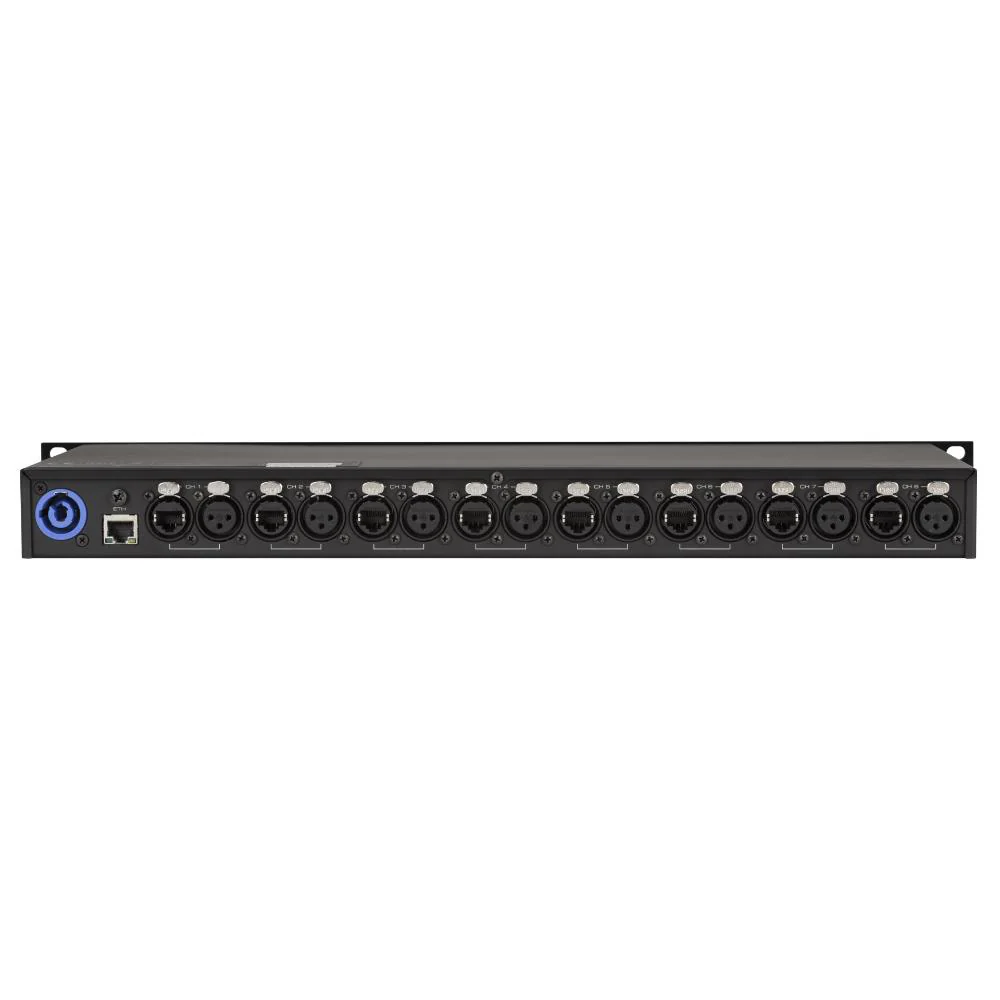

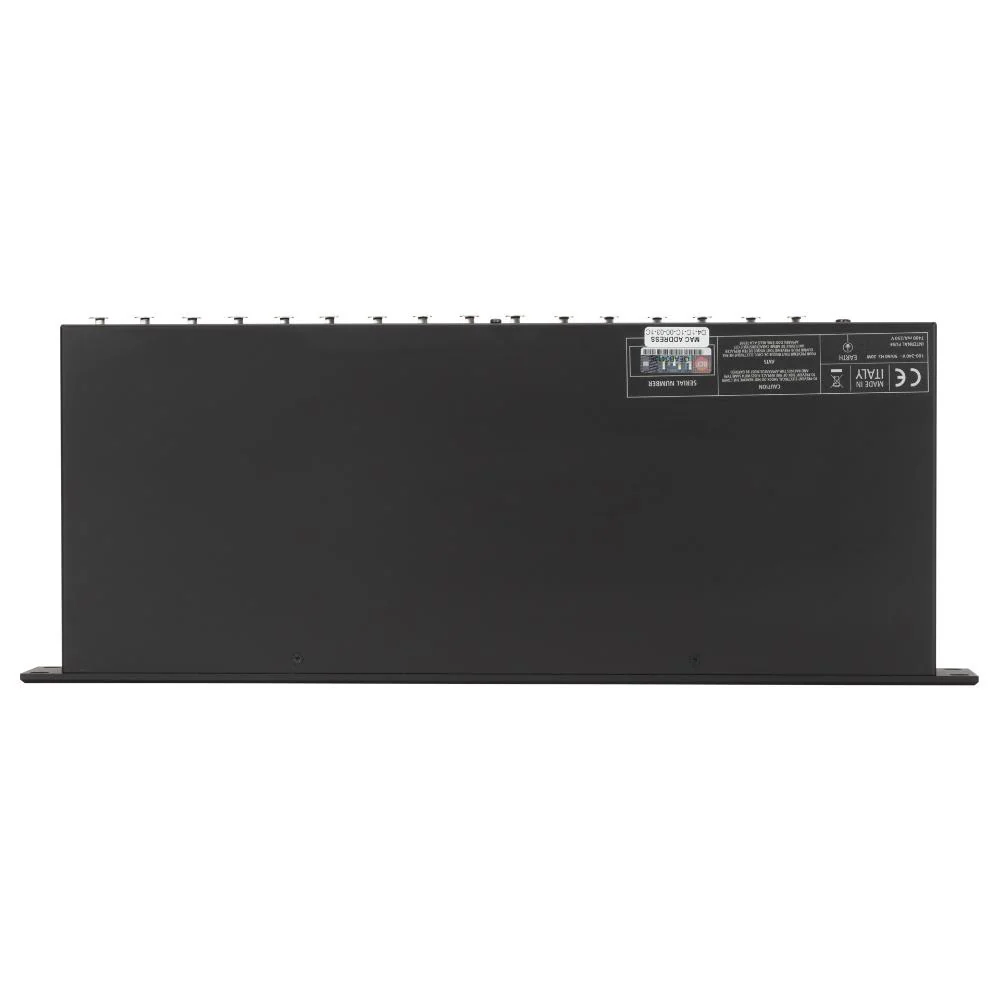

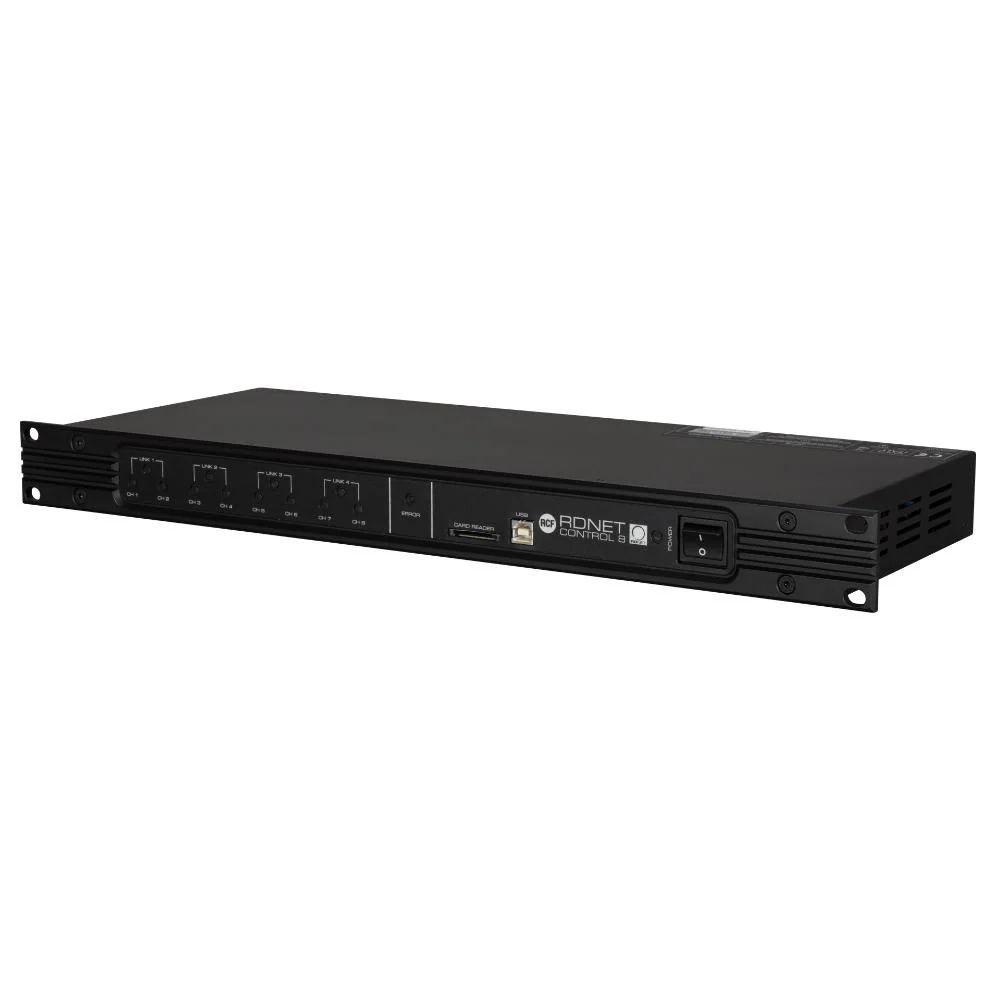

RCF RDNET-8 Control Master Unit

DESCRIPTION

The RDNet Control 8 Output Master Unit from RCF is a real-time monitor and control system able to manage up to 256 devices linked in a bus, or up to 128 devices in a ring topology. All the data collected from the slaves are delivered to the sound engineer via USB in a local installation, or via Ethernet from remote locations. The interface can be directly connected to the DSP on board of every TT+ line array module through the exclusive RDNet protocol, making it possible to address in single cabinets or groups, specific presets, or modification parameters in real-time.

• Ethernet (remote control) and USB (direct control) PC connection to RDNet

• Control up to 8 SUB-NETS of up to 32 Slave Devices

• All devices are cyclically scanned (“POLLING”) 10 times a second

• Auto detect device placement

• Controlling slave devices status and functions

• Monitoring and displaying faults and warnings sent from slave devices

• Storing subnet user filters configuration in a removable memory card

SPECIFICATIONS
