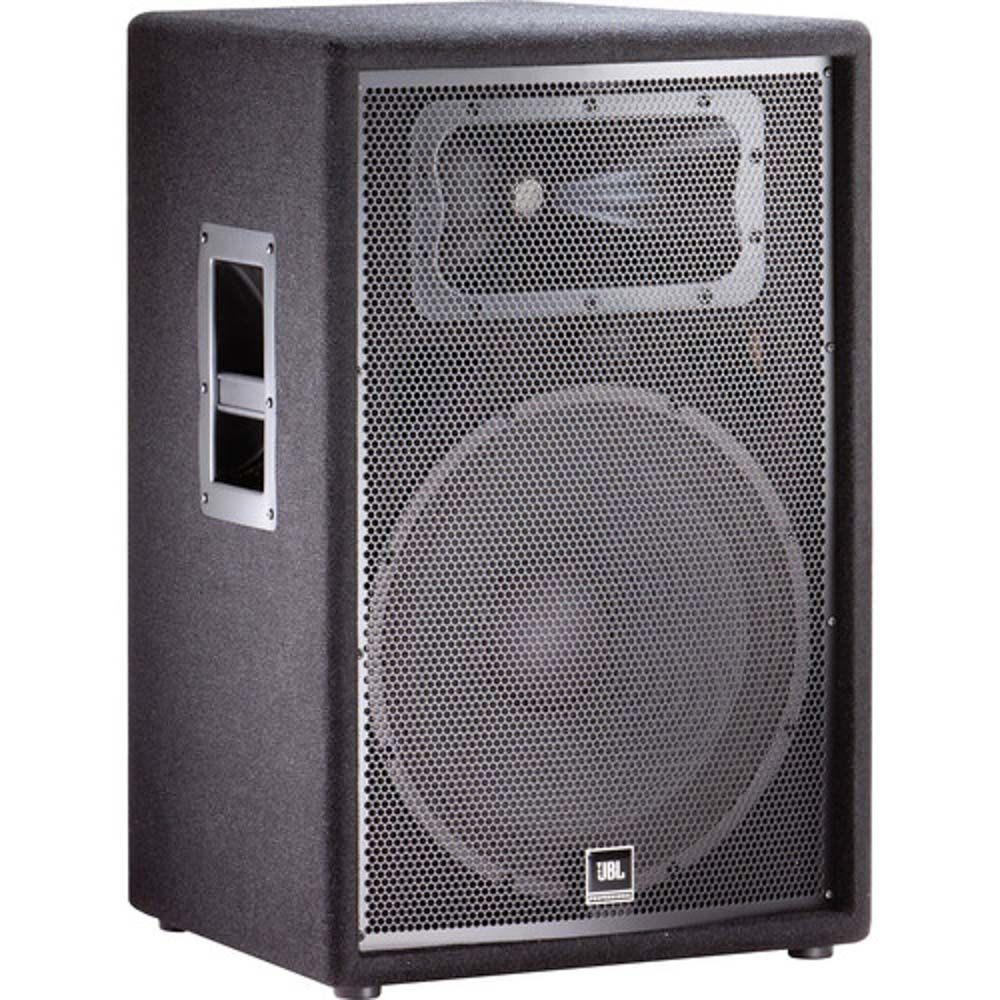

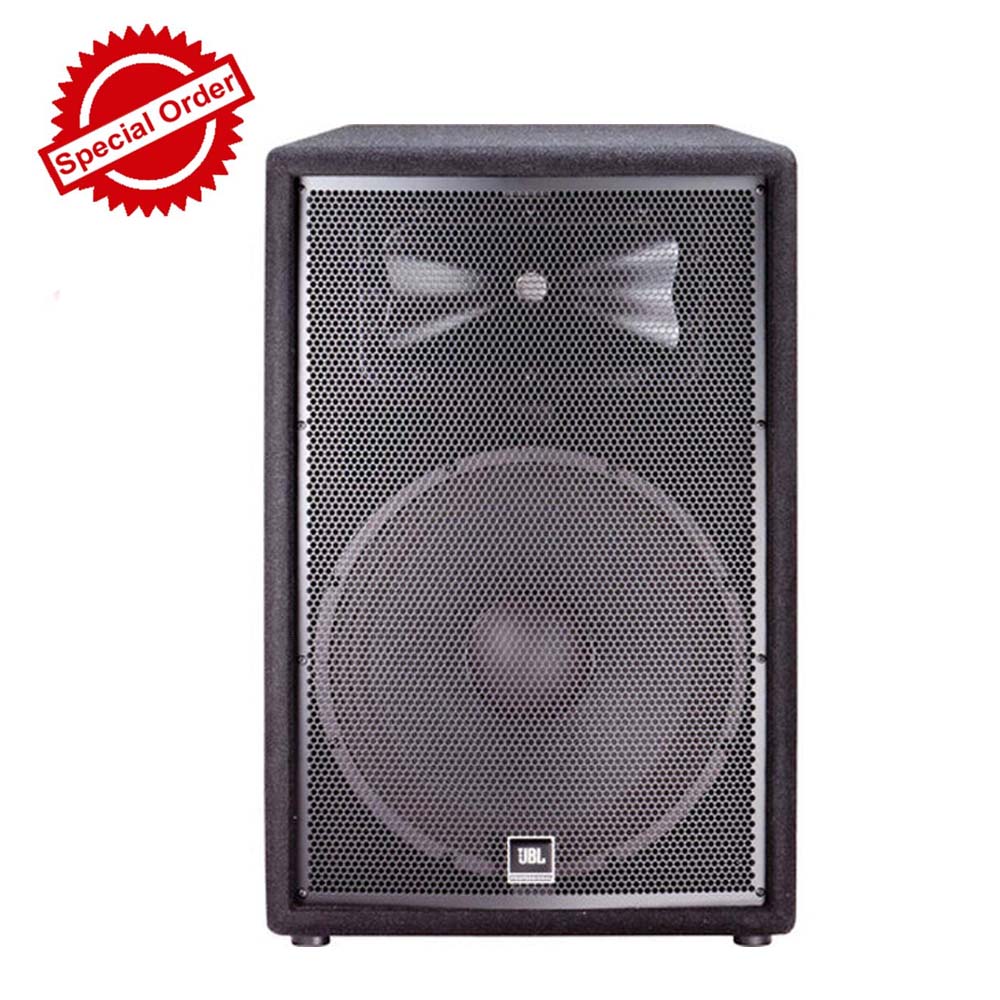

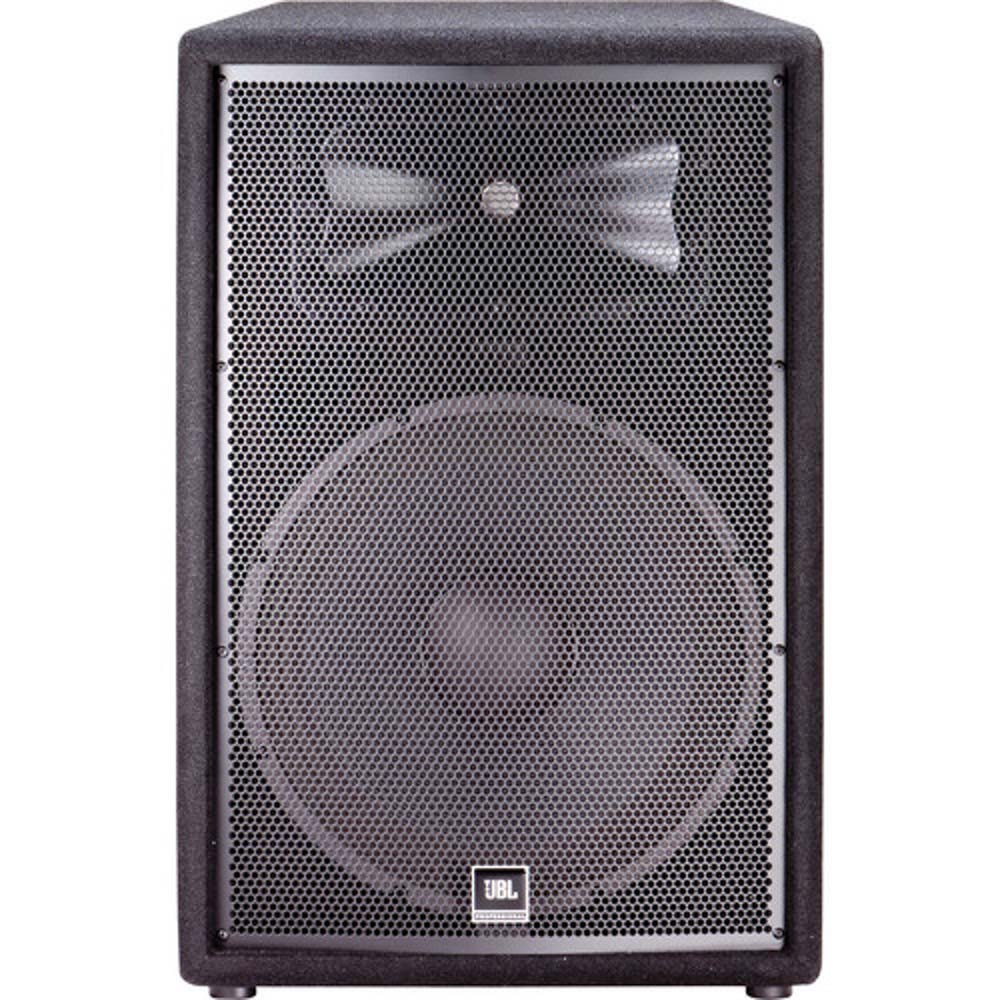

JBL JRX215 15" Two-Way Sound Reinforcement Loudspeaker System

Product image 1
Product image 2
Product image 3
Product image 4

JBL JRX215 15" Two-Way Sound Reinforcement Loudspeaker System

DESCRIPTION

The JRX215 from JBL is a two-way 15" loudspeaker system. It is suitable for live sound and speech reinforcement applications. It features a 2.5" voice coil and a 1" compression driver, as well as a frequency response of 59 Hz to 13 kHz.

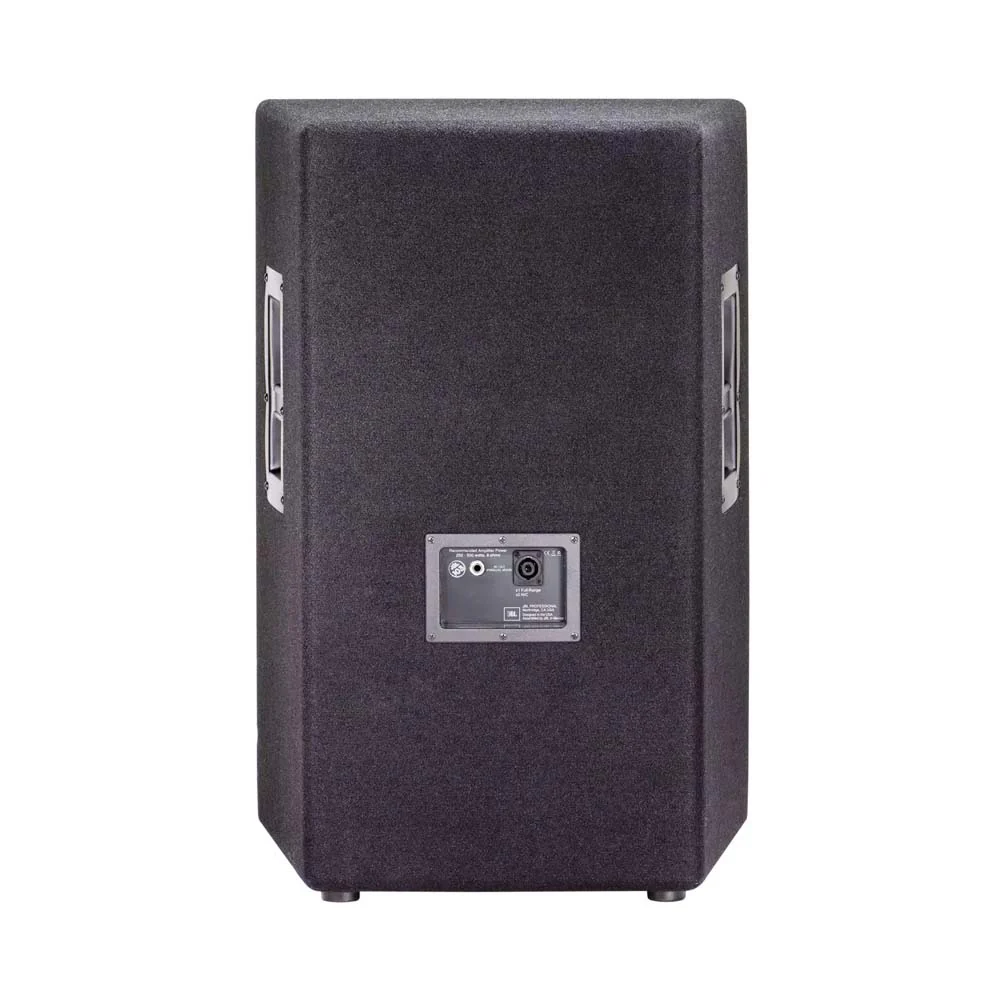

Its high-frequency driver is protected by a SonicGuard system, while the speaker's overall MDF construction allows for both durability and a suitable low-frequency response. With its non-resonant steel handles, the speaker is portable, even at a weight of 60.5 lb. For connections, this loudspeaker sports 1/4" TS and Neutrik SpeakON terminations.

CHARACTERISTICS
  • Low frequency driver sports a 2.5" / 64mm diameter edge-wound ribbon voice coil, providing a cross-sectional wire area in the voice coil gap
  • JBL 2414H-C 1" (25mm) polymer diaphragm compression driver delivers high frequency response
  • The network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
  • High-voltage capacitors and inductors with cores and heavy gauge wire enable the crossover network to handle high power without saturating
  • Progressive Transition high frequency waveguide provides coverage control, reduced distortion, and smoother frequency response
  • The enclosure is constructed from 0.75" / 19mm MDF (Medium Density Fiberboard) to ensure durability and suitable low-frequency performance.
  • SonicGuard protection for high frequency driver preserves against excess power without interrupting performance
  • Non-resonant, all-steel handles
  • 18-gauge perforated, steel grille for protecting internal components from damage.
  • Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage

SPECIFICATIONS

PA Speaker

  • Configuration: 2-Way
  • Total Power Capacity:
    • 250 W
    • 1000 W Peak
  • System Impedance: 8 Ohms (Nominal)

Drivers

  • HF Driver 1 x 1" / 25 mm Compression Driver
  • LF Driver 2 x 15" / 38.1 cm Woofer

Performance



  • Frequency Range 59 Hz to 13 kHz
  • Maximum SPL 129 dB
  • Coverage Angle 90° H x 50° V



Connectivity

  • Audio I/O
    • 1 x speakON NL4 Input
    • 1 x 1/4" TS Input

Signal Processing

  • Crossover 2.2 kHz
$145.25

Original: $415.00

-65%
JBL JRX215 15" Two-Way Sound Reinforcement Loudspeaker System—

$415.00

$145.25

Product Information

Shipping & Returns

Description

DESCRIPTION

The JRX215 from JBL is a two-way 15" loudspeaker system. It is suitable for live sound and speech reinforcement applications. It features a 2.5" voice coil and a 1" compression driver, as well as a frequency response of 59 Hz to 13 kHz.

Its high-frequency driver is protected by a SonicGuard system, while the speaker's overall MDF construction allows for both durability and a suitable low-frequency response. With its non-resonant steel handles, the speaker is portable, even at a weight of 60.5 lb. For connections, this loudspeaker sports 1/4" TS and Neutrik SpeakON terminations.

CHARACTERISTICS
  • Low frequency driver sports a 2.5" / 64mm diameter edge-wound ribbon voice coil, providing a cross-sectional wire area in the voice coil gap
  • JBL 2414H-C 1" (25mm) polymer diaphragm compression driver delivers high frequency response
  • The network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
  • High-voltage capacitors and inductors with cores and heavy gauge wire enable the crossover network to handle high power without saturating
  • Progressive Transition high frequency waveguide provides coverage control, reduced distortion, and smoother frequency response
  • The enclosure is constructed from 0.75" / 19mm MDF (Medium Density Fiberboard) to ensure durability and suitable low-frequency performance.
  • SonicGuard protection for high frequency driver preserves against excess power without interrupting performance
  • Non-resonant, all-steel handles
  • 18-gauge perforated, steel grille for protecting internal components from damage.
  • Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage

SPECIFICATIONS

PA Speaker

  • Configuration: 2-Way
  • Total Power Capacity:
    • 250 W
    • 1000 W Peak
  • System Impedance: 8 Ohms (Nominal)

Drivers

  • HF Driver 1 x 1" / 25 mm Compression Driver
  • LF Driver 2 x 15" / 38.1 cm Woofer

Performance



  • Frequency Range 59 Hz to 13 kHz
  • Maximum SPL 129 dB
  • Coverage Angle 90° H x 50° V



Connectivity

  • Audio I/O
    • 1 x speakON NL4 Input
    • 1 x 1/4" TS Input

Signal Processing

  • Crossover 2.2 kHz
