Galaxy PSE Economical 16 Ch L Rackable Wireless Mic System

DESCRIPTION

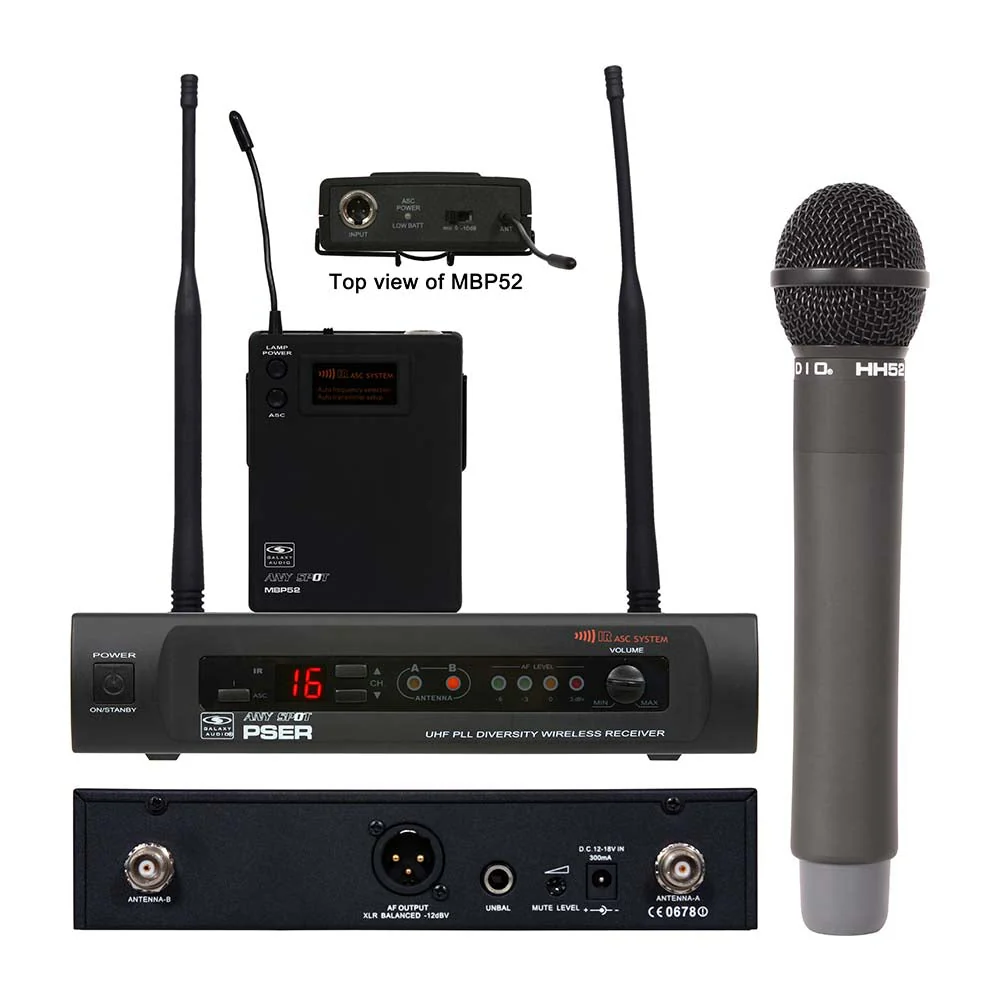

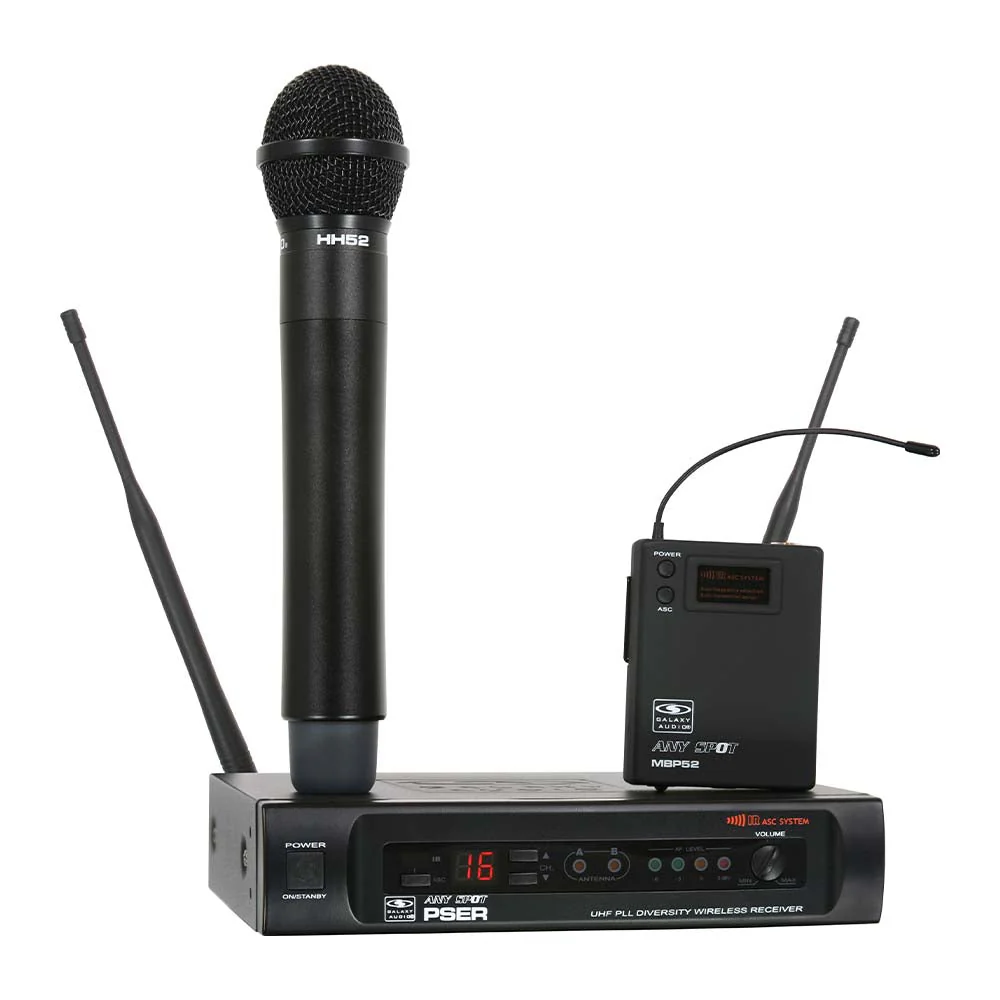

The PSE system is a UHF diversity receiver with 16 selectable channels. The multi channel microphone receiver features a volume control, channel display, Diversity Antennas and IR Sync. The PSE has an XLR 1/4" output and squelch adjustment. The PSE is available with a handheld, body pack with headset, lav, or instrument cable.

The PSER can be used and will sync with either the HH52 or MBP52 transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2 AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.

• 300' Range
• 16 Selectable UHF Frequencies
• Diversity Antennas

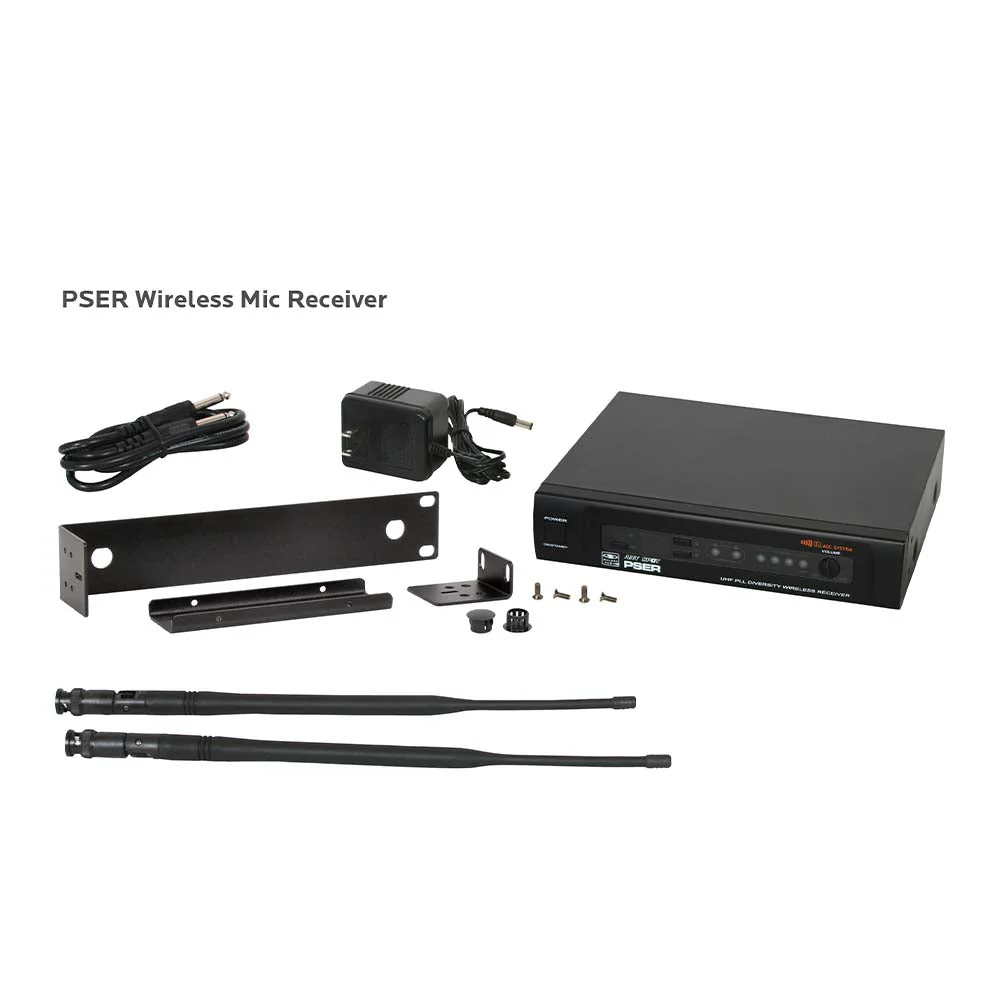

• Single/Dual Rack Mount Included

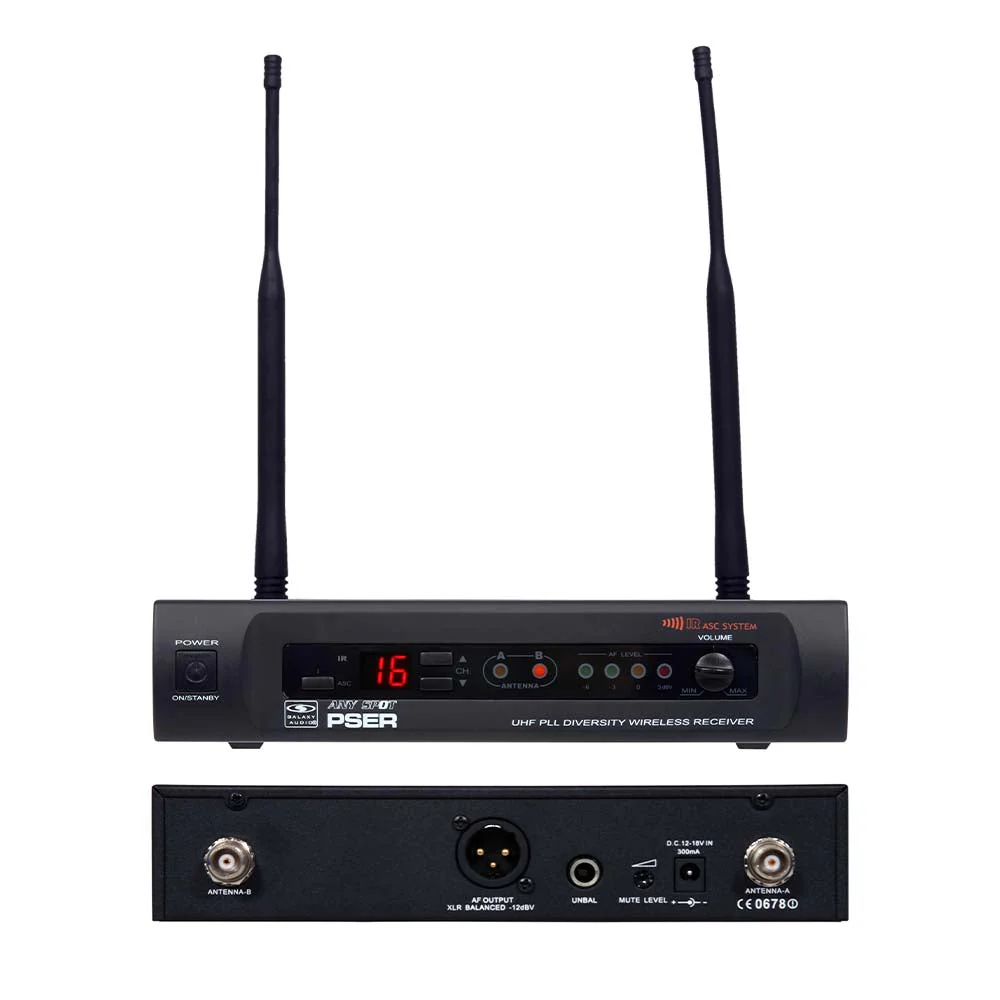

PSER Receiver

• Output Volume Control
• IR Sync Receiver to Transmitter
• AF Level Indicator
• Active Antenna Indicator
• Squelch Adjustment
• XLR / 1/4" Outputs
• Detachable BNC Antennas
• Metal Chassis

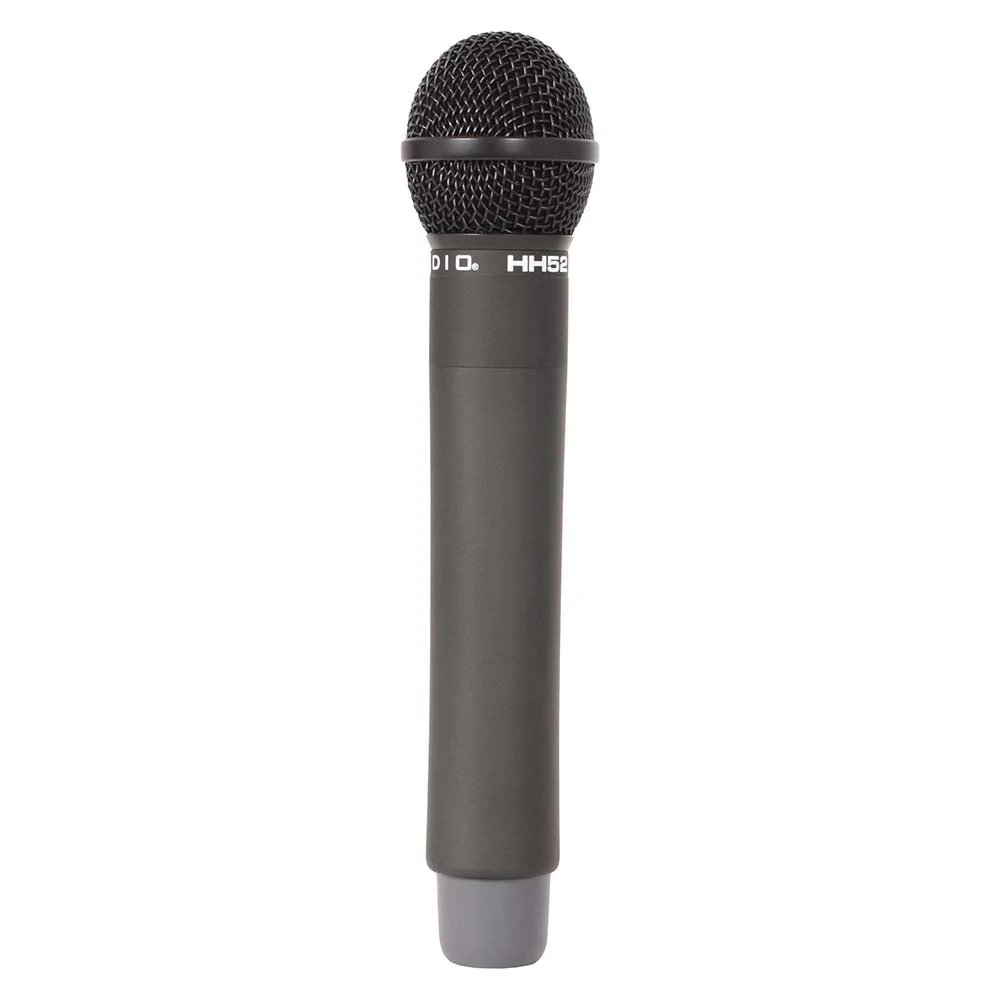

HH52 Transmitter

• Dynamic Microphone Element
• On/Off Switch
• IR Sync Transmitter to Receiver
• High/Low RF Switch
• 10 mW / 5 mW
• Metal Chassis
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 9.8" x 2.1" (250 x 53 mm) (L x Dia.)
• Weight: 9.5 oz. (270 g)

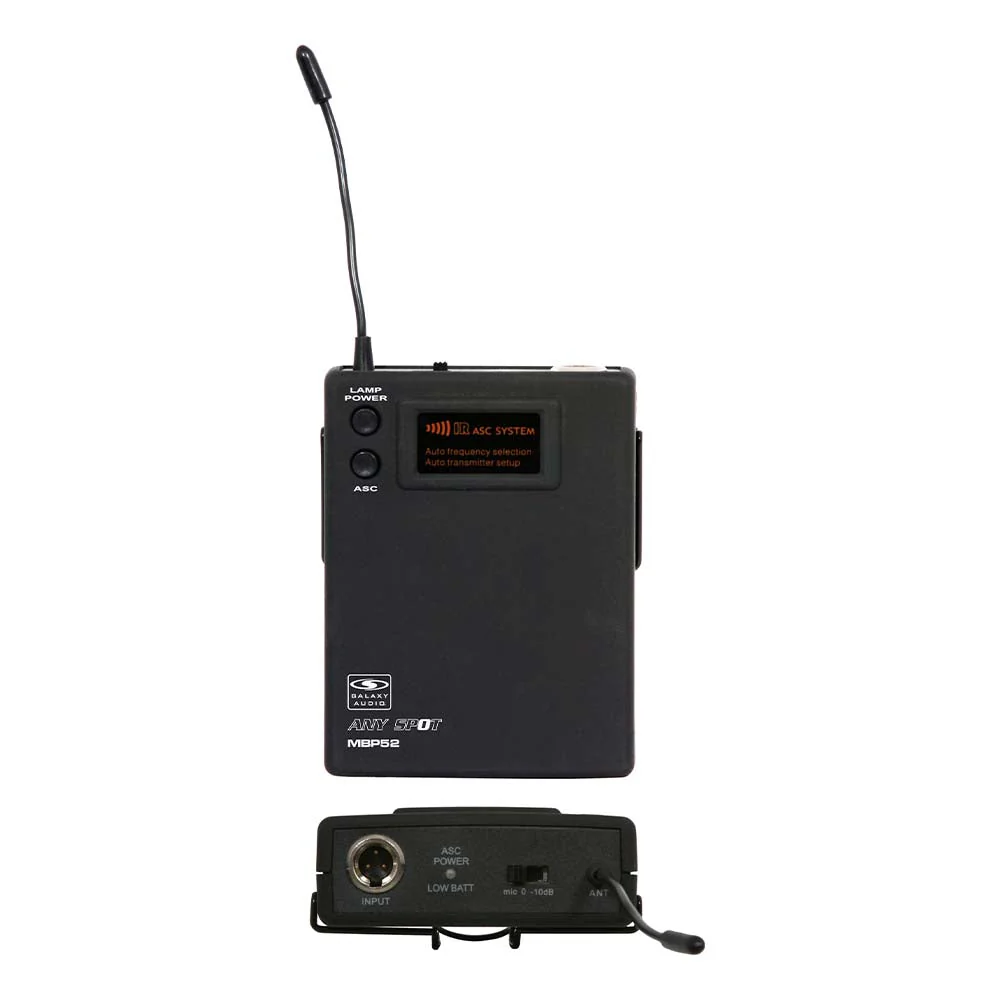

MBP52 Transmitter

• Low Battery Indicator
• 3 Position Switch
• IR Sync Transmitter to Receiver
• Mic/0/-10dB
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD)
• Weight: 2.8 oz (80 g)

SPECIFICATIONS

PSE SYSTEM SPECS
Available Frequencies	16
Frequency Ranges	CODE D 584~607MHz CODE N 518~542MHz
Band	UHF
Operating Range	Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response	(+/-3 dB) 60 Hz ~ 16 kHz
Total Harmonic Distortion	(+/-30 kHz deviation 1 kHz tone): <1%
Dynamic Range	>90 dB A-weighted
Operating Temperature Range	14° F to 122° F (-10° C to 50° C), battery characteristics may limit this range
PSER RECEIVER
Audio Output Level (+/-30 kHz deviation, 1 kHz tone)	XLR Connector (into 600 Ohms load) -12 dBV 1/4" Connector (into 3 k Ohms load) -18 dBV
Output Connections	1 Male XLR Balanced 1/4" Balanced
Output Impedance	XLR connector 200 Ohms 1/4" connector 1 k Ohms
XLR Output	Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio + Pin 3: No Audio -
Sensitivity	-93 dBm for 30 dB
Image Rejection	>90 dB
Casing	Metal Chassis EIA STANDARD 1 U
Dimensions	1.7" x 8.3" x 6.3" (44 x 212 x 160 mm)
Weight	31 oz (880 g)
Power Requirements	12-18 V DC at 300 mA, supplied by external power supply
HH52 HANDHELD TRANSMITTER
Max Audio Input Level	0 dBV
Gain Adjust	Trim Pot
RF Output	10 mW, 5 mW
Frequency Response	70 Hz ~ 15 kHz
Dimensions	9.8" x 2.1" (250 x 53 mm) (LxDia)
Weight	9.5 oz (270 g) (without batteries)
Power Requirements	2 "AA" size alkaline or rechargeable batteries
Battery Life	About 8 hours (alkaline)
MBP52 BODY PACK TRANSMITTER
Max Audio Input Level	0 dBV to +10 dBV
Gain Adjust	Mic / 0 dB / -10 dB
RF Output	10 mW
Input Impedance	5 k Ohms
Dimensions	3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD)
Weight	3.0 oz (85 g)
Power Requirements	2 "AA" size alkaline or rechargeable batteries
Battery Life	About 8 hours (alkaline)
