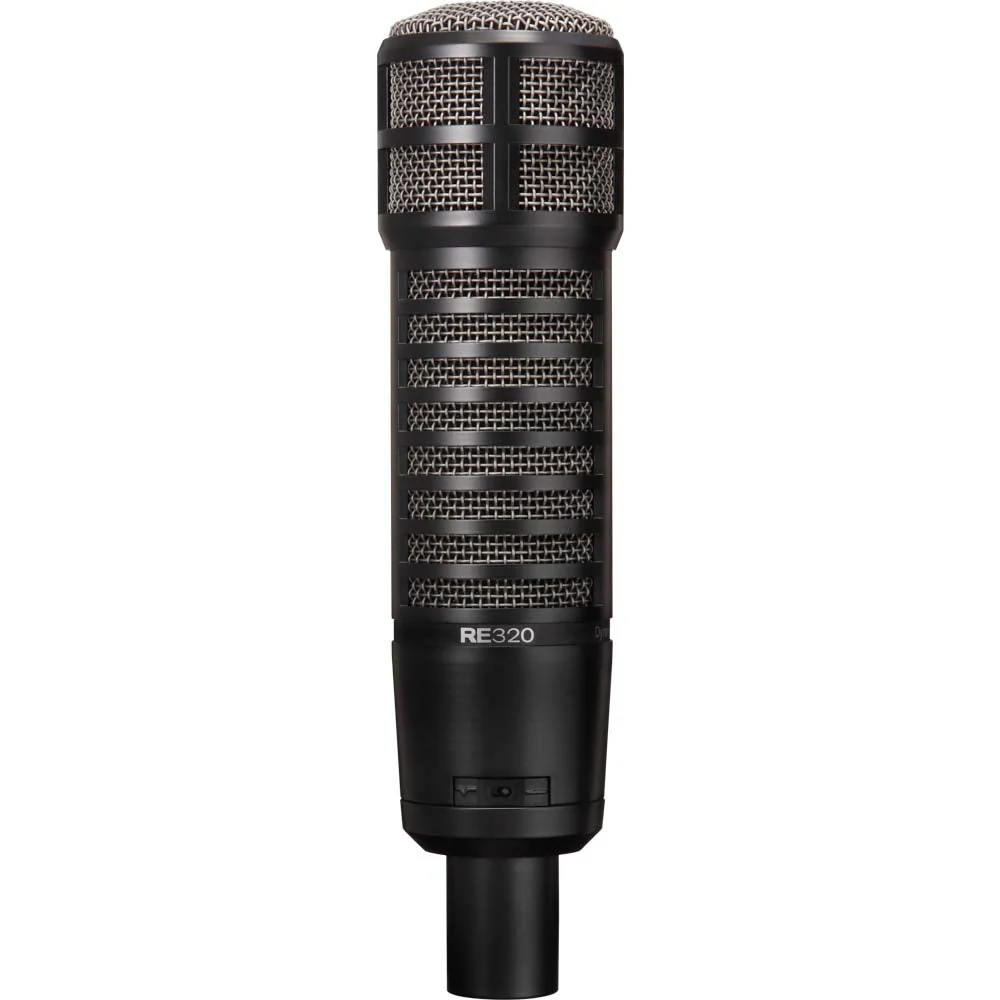

Electro-Voice RE320 Cardioid Dynamic Broadcast Microphone

DESCRIPTION

Variable‑D dynamic vocal & instrument microphone
Maximum versatility for broadcasting, podcasting, and music production
Variable-D proximity control minimizes positional and off-axis tonal shifts
Integrated humbucking coil and integral pop filters provide virtually noiseless performance
Unique dual-voicing switch selects from two response curves:
General purpose curve for voice and instrument production
Kick drum curve for bass drums and some voices
A professional-grade dynamic microphone for broadcasting, podcasting, recording, and sound reinforcement applications requiring extremely low noise and the best possible tonal and transient response. Ideal for capturing a wide variety of vocal and instrument sources, the RE320 delivers unparalleled detail, dynamic response, and pleasing natural tone.

SPECIFICATIONS

• Generating Element: Dynamic N/Dym Magnet Structure
• Frequency Response: 30 Hz - 18,000 Hz (kick curve) 45 Hz - 18,000 Hz (general curve)
• Polar Pattern: Cardioid
• Impedance: 150 ohms balanced
• Sensitivity, Open Circuit Voltage, 1 kHz: 2.5 mV/pascal
• Hum Pickup Level, typical (60 Hz/1 millioersted field): -130 dBm
• Polarity: Pin 2 will be positive referenced to Pin 3 with positive pressure on diaphragm
• Case Material: Steel
• Dimensions: Length = 216.7 mm (8.53 in) Widest Diameter = 54.4 mm (2.14 in) Body Diameter = 49.2 mm (1.94 in)
• Finish: Semi-Gloss Black
• Net Weight: 681 g (1 lb, 8 oz)
• Shipping Weight: 1503 g (3 lb, 5 oz)
• Accessories Furnished: 81715 stand clamp
• Optional Accessories: WSPL-2 Foam Wind Screen 309A Isolation Mount
