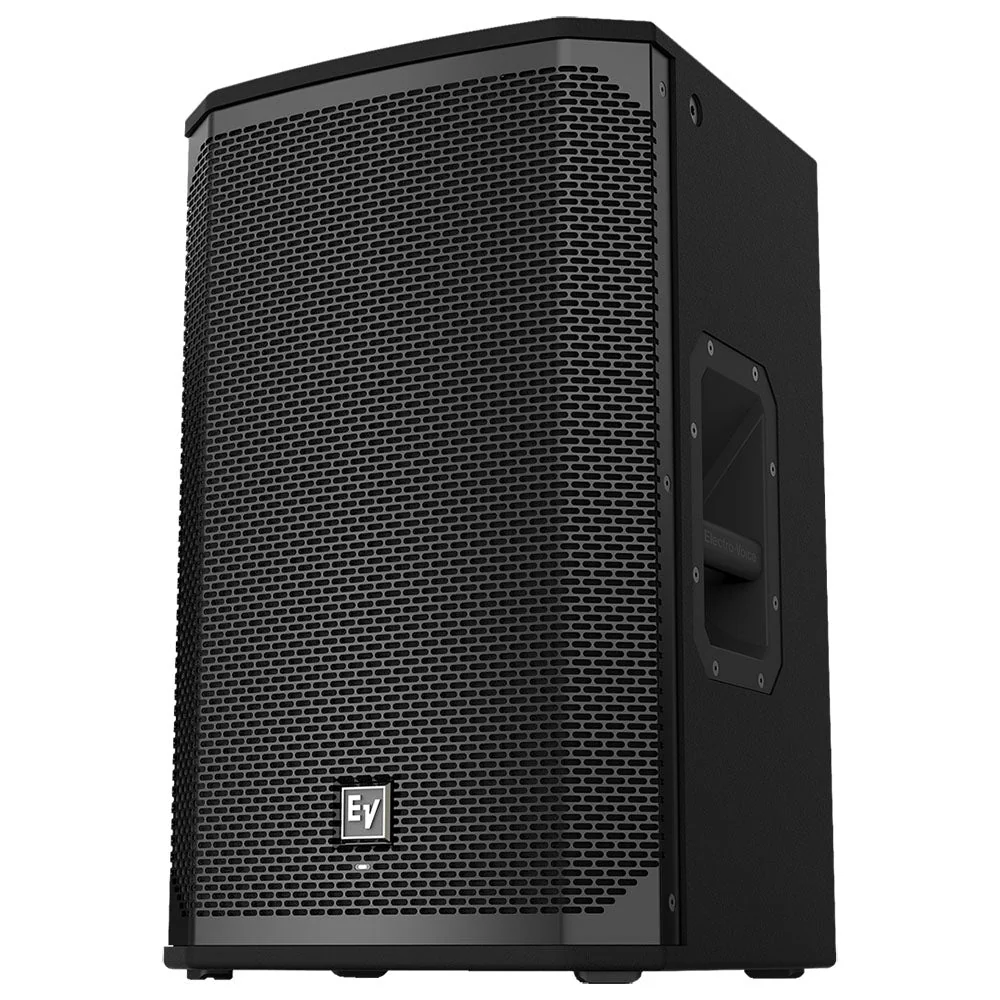

Electro-Voice EKX Series 1500 Watt Powered Speaker 12" 2-Way

FEATURES

• QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
• High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

SPECIFICATIONS

• Frequency Response (-3 dB) 60 Hz - 18 kHz¹
• Frequency Range (-10 dB) 50 Hz - 20 kHz¹
• Maximum SPL 132 dB²
• Coverage (H x V) 90" x 60"
• Power Rating 1500 W
• LF Transducer EVS-12M 300 mm (12 in)
• HF Transducer DH-1M 1-inch titanium compression driver
• Crossover Frequency 7 kHz
• Connectors (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
• Enclosure 15 mm plywood with EVCoat
• Grille 18 AWG steel with powdercoat
• Suspension (8) M10 threaded mounting points
• Dimensions (H x W x D) 607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in)
• Net Weight 8 kg (41.4 lb)
• Shipping Weight 9 kg (50.4 lb)
• Power Consumption 8 A³
