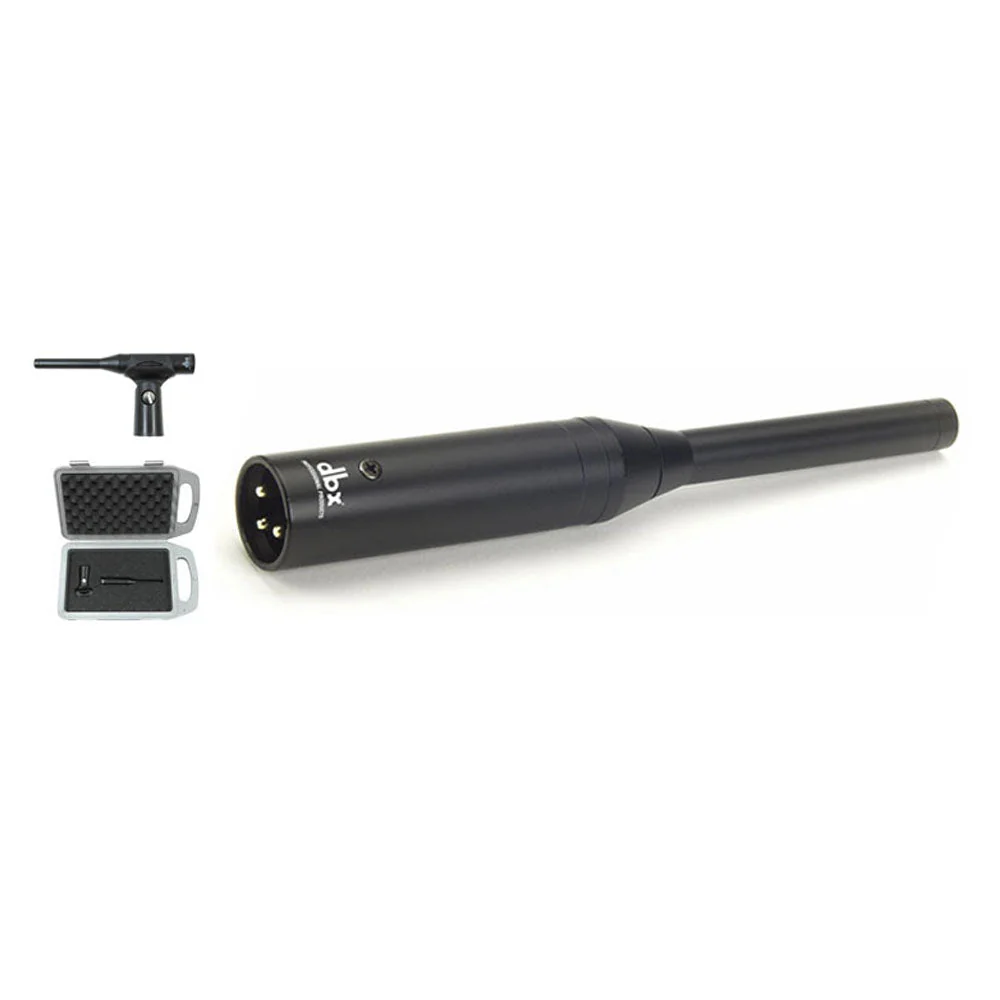

DBX RTA-M Driverack Series Reference Microphone

DESCRIPTION

The optional RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA series (PA, PX, PA+, PA2) and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments.

The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz , ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case.

FEATURES

• Polar Pattern : omni-directional
• Element : back electret-Condenser
• Frequency Response : 20 Hz - 20 kHz
• Impedance : 250 30% (at 1,000Hz)
• Sensitivity : -63 dB +-3 dB ( 0 dB=1V/ microbar 1,000 Hz indicated by open circuit )
• Operating Voltage : phantom power 9V-52VDC

SPECIFICATION

Element	Back Electret Condenser
Polar Pattern	Omnidirectional
Frequency Range	20 Hz ~ 20,000Hz
Impedance	250 Ω ± 30% (@ 1KHz)
Operating Voltage	9~52V DC Phantom Power
Sensitivity	-63 dB ± 3 dB (0 dB=1V/microbar 1,000 Hz indicated by open circuit)
Dimensions	Ø10(mic head) x 145(L) mm
