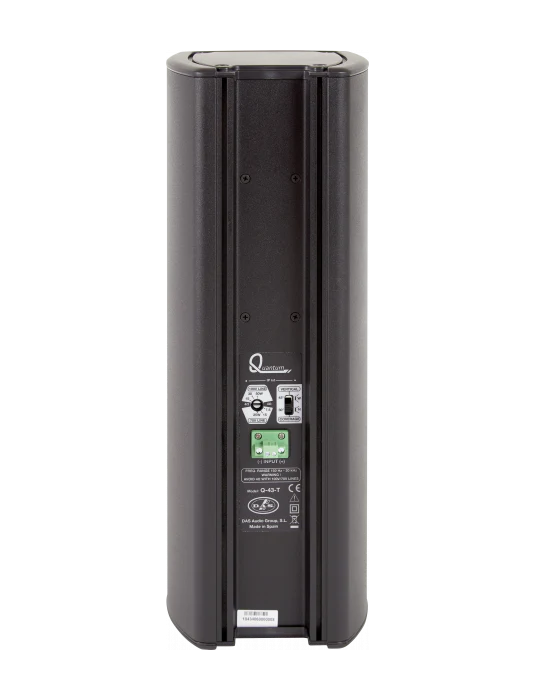

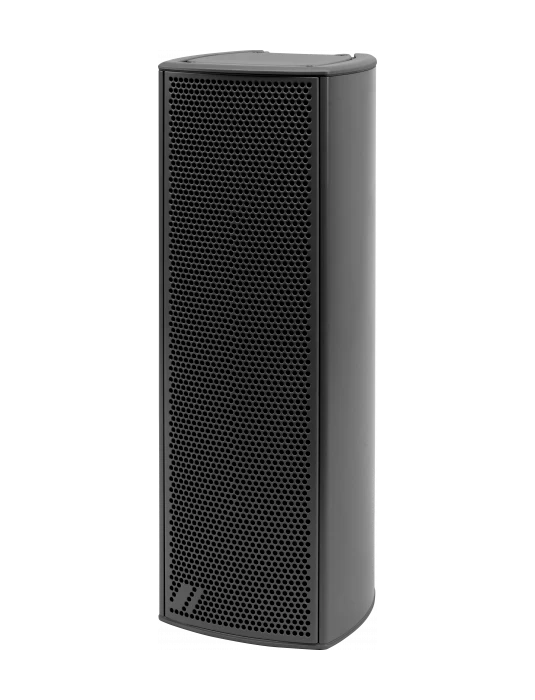

DAS Audio Q-43-T 80-Watt Passive Speaker

DESCRIPTION

This passive, 80 W, 4x3", full-range system is designed for small- and mid-sized venues. The vertical dispersion selection by means of the system-integrated filter (30º/45º) makes it possible to control the system’s dispersion lobe in the vertical plane and thus reduce the reverb, improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction.

SPECIFICATIONS

• Frequency Range (-10 dB): 150 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 120º
• Vertical Coverage: Switchable: 45º – 30º
• Nominal Impedance: 4 ohms
• Transformer Taps 70 V: 7.5 W – 15 W – 25 W
• Transformer Taps 100 V: 15 W – 30 W – 50 W
• RMS Power Handling: 80 W
• Peak Power Handling: 320 W
• On-axis Sensitivity 1W/1 m: 93 dB SPL
• Maximum Peak SPL at 1 m: 118 dB SPL
• Audio Input Connector: 4-way Phoenix 3.8 mm
• Enclosure Construction: Aluminum
• Color: Black
• IP Rating: IP66
• Depth: 125 mm (4,9 in)
• Dimensions ( H x W x D ): 355 x 125 x 125 mm
  14,0 x 4,9 x 4,9 in
• Net Weight: 5.3 kg ( 11.7 lb )
• MF Driver: 3P16
