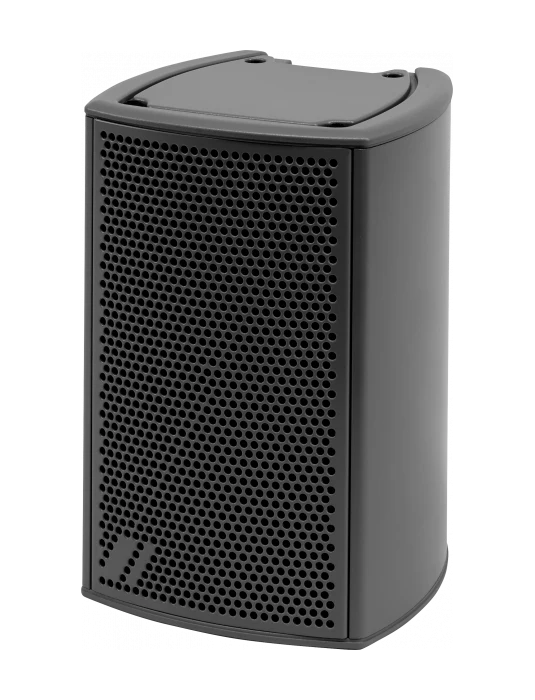

DAS Audio Q-23-T

DESCRIPTION

The Q-23 is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3 has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.

SPECIFICATIONS

• Frequency Range (-10 dB): 150 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 120º
• Vertical Coverage: Switchable: 90º -70º
• Nominal Impedance: 8 ohms
• Transformer Taps 70 V: 5 W – 10 W – 15 W
• Transformer Taps 100 V: 10 W – 20 W – 30 W
• RMS Power Handling: 40 W
• Peak Power Handling: 160 W
• On-axis Sensitivity 1W/1 m: 90 dB SPL
• Maximum Peak SPL at 1 m: 112 dB SPL

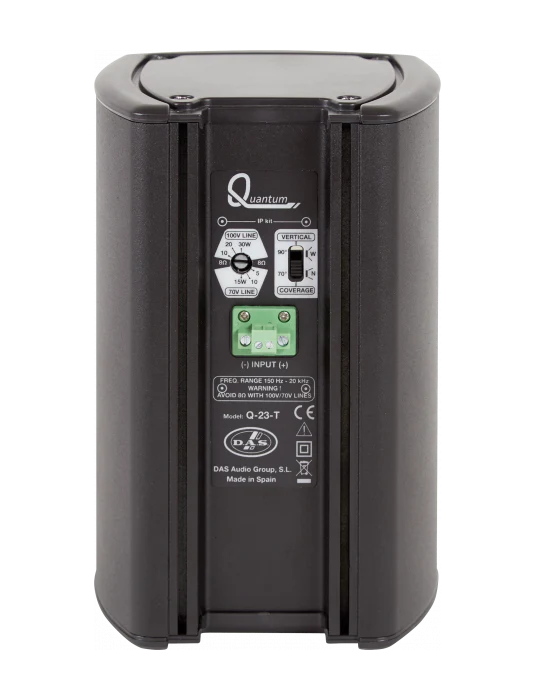

• Audio Input Connector: 4-way Phoenix 3.8 mm
• Enclosure Construction: Aluminum
• Color: Black
• IP Rating: IP66
• Depth: 125 mm (4,9 in)
• Dimensions ( H x W x D ): 190 x 125 x 125 mm
  7,5 x 4,9 x 4,9 in
• Net Weight: 2,8 kg ( 6,2 lb )
• MF Driver: 3P16
