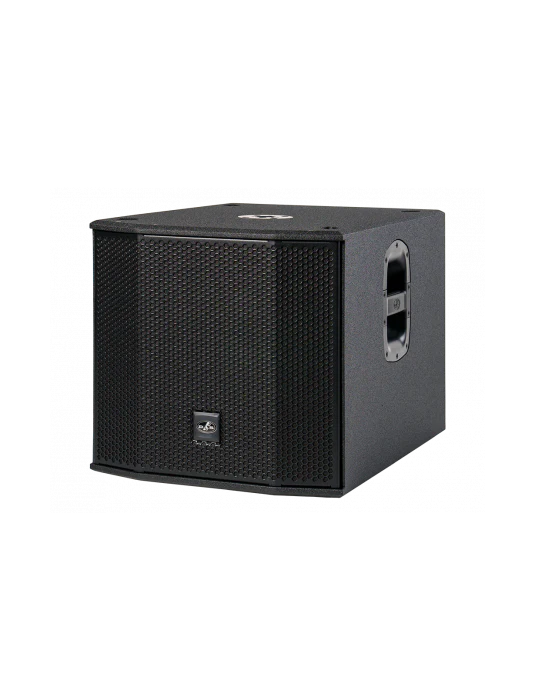

DAS ALTEA-S15A 15'' Compact Class D Active Subwoofer
DESCRIPTION
The ALTEA-S15A is a compact yet powerful active subwoofer with a bass-reflex design that delivers deep frequency response and impressive sound pressure levels.
The 15″ DAS 15FW4 woofer boasts a high-quality construction with a 3″ voice coil and die-cast aluminium basket, allowing for high excursion and a power handling of 600 watts/AES. An optimized ventilation system enables a high sustained load with extremely reduced power compression.
The woofer is driven by an integrated Class-D power amplifier with a wide-range switching power supply, providing 600 watts/RMS and 1200 watts/peak, enabling up to 131dB/max SPL with a frequency response of 40Hz to 125kHz.
The ALTEA-S15A also features an extensive range of settings to ensure the best possible performance. PowerCon In/Out power connections are included, while the integrated DSP with DAScontrol™ (LCD display+encoder) allows for adjustable crossover frequencies, two sound presets (deep/loud), and cardioid presets. With the cardioid presets you can quickly and easily create setups with multiple ALTEA-S15A units to reduce the sound energy emitted to the rear.
The ALTEA-S15A cabinet is constructed of high-quality birch plywood and finished with our rugged ISOflex™ PU coating. The high-quality front grille is powder-coated. For transport, in addition to two side handles, the ALTEA-S15A is prepared for the mounting of rear wheels.
SPECIFICATIONS
Performance- Frequency Range (-10 dB) 40 Hz – 125 Hz
- Maximum Peak SPL at 1 m 131 dB
- Nominal Amplifier Power (continuous) 600 W
- Nominal Amplifier Power (peak) 1200 W
- Input Type Balanced
- Input Impeadance 20 kohms
- Input Sensitivity 1.95 V (+8 dBu)
- Audio Signal Input Connector 2 x Female XLR
- Audio Signal Loop Thru Connector 2 x Male XLR
- Control DAScontrol™
- AC Output Connector powerCON NAC3MPB
- Current Draw 230 V / 115 V 1.4 A/2.8 A
- Enclosure Construction Birch Plywood
- Enclosure Geometry Rectangular
- Finish ISO-flex Paint
- Color Black
- Dimensions ( H x W x D )
- 470 x 485 x 685 mm
- 18,5 x 19,1 x 27,0 in
- Net Weight 30,0 kg ( 66,0 lb )
- LF Driver 15FW4
- Carton Dimensions ( H x W x D )
- 515 x 525 x 716 mm
- 20,3 x 20,7 x 28,2 in
- Shipping Weight 35,0 kg ( 77,0 lb )
