Audio Technica ATM-DRUM4 Drum Mic Pack

DESCRIPTION

The ATM-DRUM4 Drum Pack includes a core selection of four microphones specifically engineered for drum applications. With ATM Series mics for kick, snare and overheads, the ATM-DRUM4 pack has everything you need to professionally mike drums in small clubs, churches and other controlled environments, and for home recording applications.

All four of the microphones in the pack – one ATM250 hypercardioid kick drum mic, one ATM650 hypercardioid snare mic, and two ATM450 cardioid overhead mics – feature low-profile design for minimum visibility and versatile placement options around the drum kit. They are engineered to handle fast transients and high SPLs, and deliver superior off-axis rejection.

Also included in the package are the specified clamps for each microphone, four 5/8"-27 to 3/8"-16 threaded adapters, and a hard carrying case with a die-cut foam interior to hold all microphones and accessories.

CHARACTERISTICS

Features

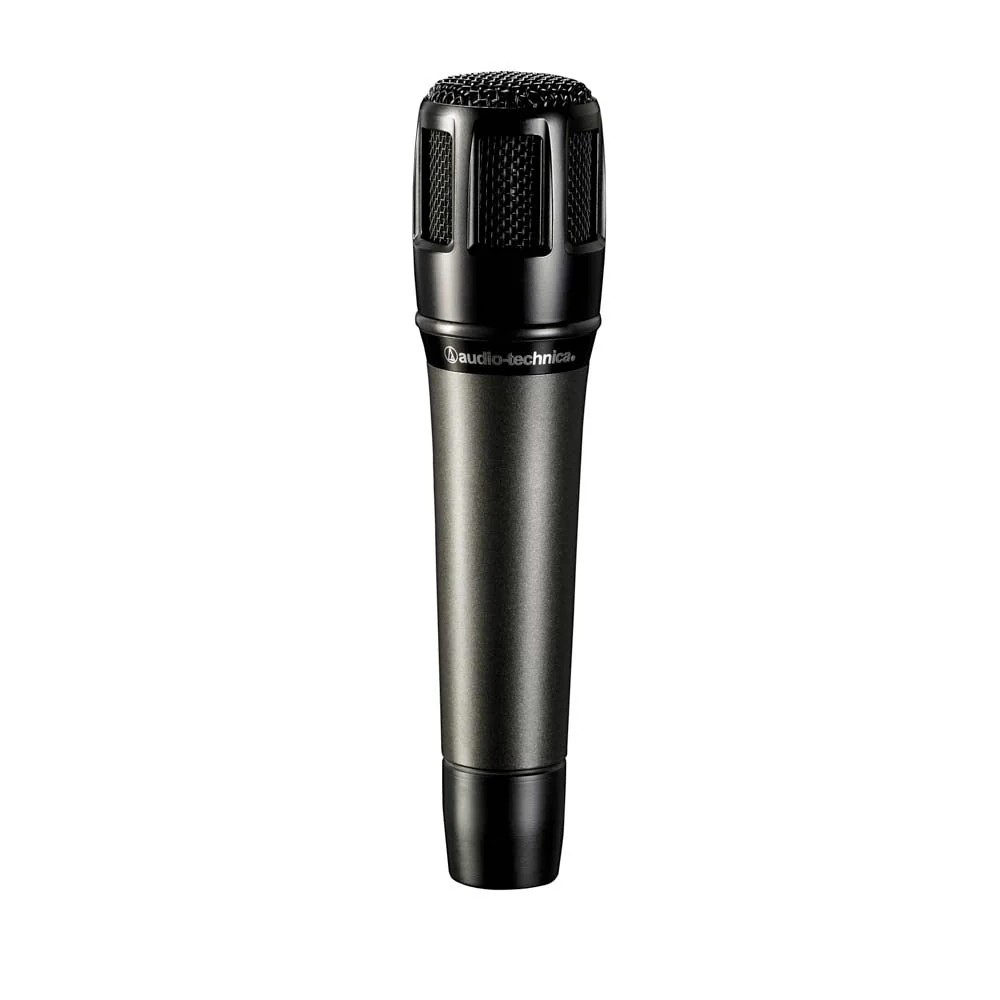

ATM250 Hypercardioid Dynamic Instrument Microphone (1 included)

• Tailored for use on kick drums
• Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Durable, proven performance for professional applications
• Hi-ENERGY® neodymium magnet for improved output and transient response
• Superior off-axis rejection for maximum gain before feedback
• Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
• Rugged, all-metal design and construction for years of trouble-free use

ATM650 Hypercardioid Dynamic Instrument Microphone (1 included)

• Tailored for use on snare drums
• Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Durable performance for professional applications
• Special dual-wall floating construction reduces handling noise and assures consistent performance from mic to mic
• Hi-ENERGY® neodymium magnet for improved output and transient response
• Multi-stage flat grille design is engineered to enable easy placement as close as possible to sound source
• Rugged, all-metal design and construction for years of trouble-free use
• Includes AT8470 Quiet-Flex™ stand clamp

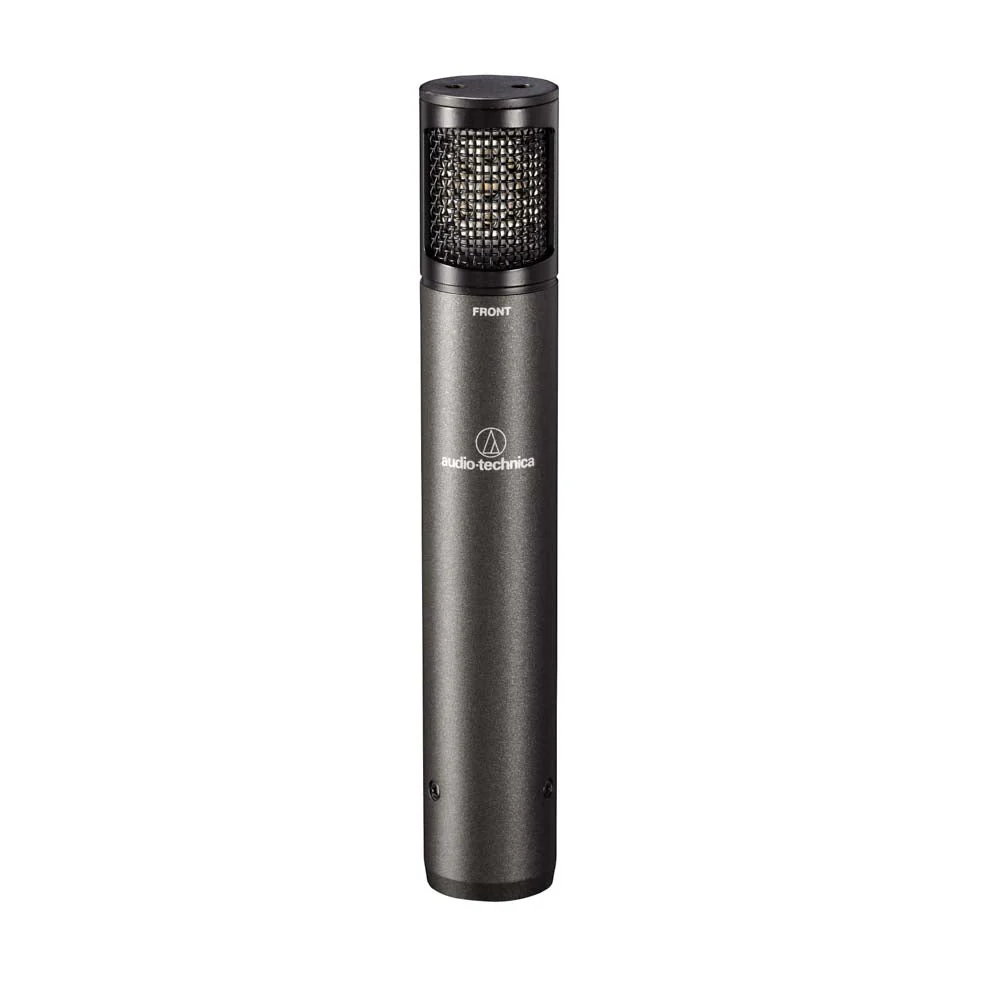

ATM450 Cardioid Condenser Instrument Microphone (2 included)

• Tailored for use on cymbals
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Unique side-address stick design maximizes placement options with minimal obstructions
• Integral 80 Hz HPF switch and 10 dB pad
• Durable performance for professional applications
• Rugged, all-metal design and construction for years of trouble-free use
• Includes AT8471 isolation clamp for shock protection, secure mounting and easy positioning
• Pack includes a hard carrying case with die-cut foam interior

Specifications

ELEMENT	ATM250, ATM650: Dynamic ATM450: Fixed-charge back plate permanently polarized condenser
POLAR PATTERN	ATM250, ATM650: Hypercardioid ATM450: Cardioid
FREQUENCY RESPONSE	ATM250: 40-15,000 Hz ATM650: 80-17,000 Hz ATM450: 40-20,000 Hz
OPEN CIRCUIT SENSITIVITY	ATM250: -54 dB (1.9 mV) re 1V at 1 Pa ATM650: -56 dB (1.5 mV) re 1V at 1 Pa ATM450: -41 dB (8.9 mV) re 1V at 1 Pa
IMPEDANCE	ATM250: 600 ohms ATM650: 300 ohms ATM450: 200 ohms
WEIGHT	ATM250: 252 g (8.9 oz) ATM650: 279 g (9.8 oz) ATM450: 98 g (3.5 oz)
DIMENSIONS	ATM250: 127.5 mm (5.02") long, 55.0 mm (2.17") diameter ATM650: 164.2 mm (6.46") long, 38.8 mm (1.53") diameter ATM450: 126.9 mm (5.00") long, 21.0 mm (0.83") diameter
OUTPUT CONNECTOR	Integral 3-pin XLRM-type
ACCESSORIES FURNISHED	Three AT8471 isolation stand clamps; AT8470 Quiet-Flex™ stand clamp; four 5/8"-27 to 3/8"-16 threaded adapters; hard carrying case

---

Audio-Technica Case Style:
ATM250: R9
ATM650: T5
ATM450: S11
